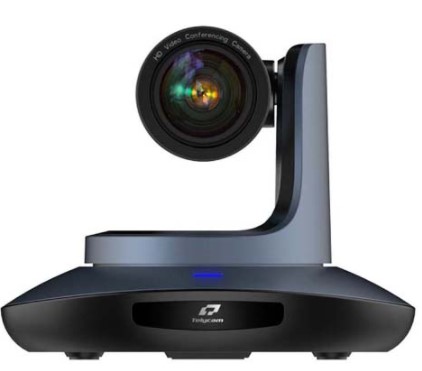

5X 4K UHD IP PTZ Video Camera

Telycam TLC-300-IP-5-4K is a professional grade 4k UHD video camera, video streaming from IP, HDMI,3G-SDI&USB3.0 simultaneously, very ideal for a small room and middle room AV solution, video conferencing, and lecture capture application.

Camera:

Sensor: 1/2.5 inch 8.5MP CMOS sensor

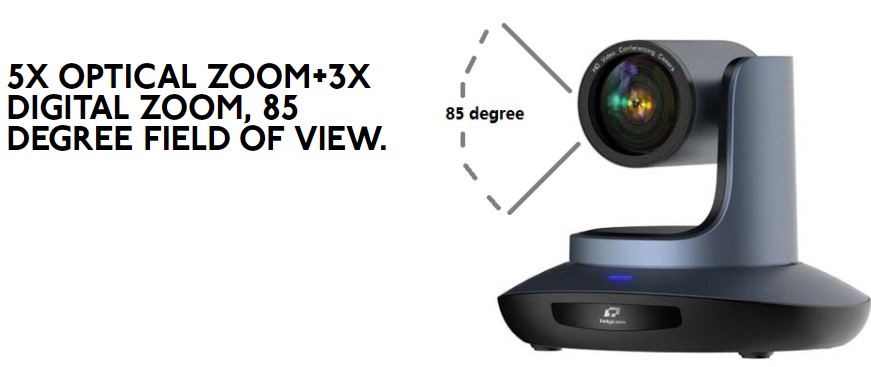

Lens: 5x optical zoom, 3x digital zoom

View Angle: 26.5°（wide）~85°（tele）

Video Format:

HDMI: 3840*2160p30/25, 1080p60/50/30/25, 720p60/50/30/25, 1080i60/50

IP: Main Streaming：3840*2160@30-1, 1920*1080@30-1

Sub-streaming: 1280*720@30-1, 1024*576@30-1, 640*360@30-1

3G-SDI: 1080p60/59.94/50/30/29.97/25; 720p60/59.94/50/30/29.97/25; 1080i60/59.94/50

USB3.0: 1080p60/50/30/25; 720p60/50/30/25

USB2.0: 1024*576p30, 960*540p30, 640*360p30, 352*288p30

Focal Length: f＝2.8(近)～14mm(远)

S/N Rate: >50dB

Minimum Lux: 0.01 lux

Focus: Auto/Manual

Min Focus Distance: Wide:0.3m Tele:1m

Iris: Auto/Manual

Iris No.: Wide:1.84 Tele:2.81

White Balance: Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Electronic Shutter: Auto/ Manual

BLC: ON/OFF

Anti Flicker: 50Hz/60Hz/OFF

Video Freeze: Optional

Mechanical

Pan Rotation Angle: -170° ~ +170°

Tilt Rotation Angle: -30° ~ +90°

Pan rotation speed: 0°~120°/s

Pan rotation speed: 0°~80°/s

Preset: 128 via RS232 control; 10 via remote controller

Image Flip: Support

Port:

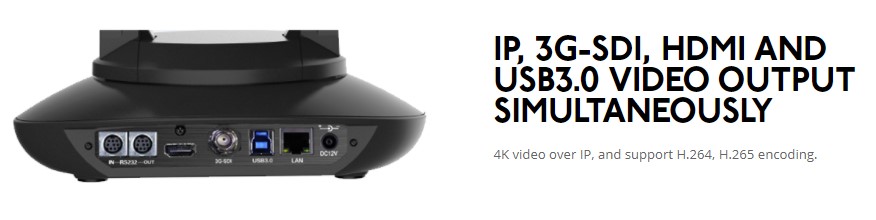

Video: IP, HDMI, 3G-SDI, USB3.0

Control: RS232(Sony Visca), RJ45(Onvif)

Power: DC12V

POE: Supported

Encoding:

Video Encoding Standard: H.264/H.265

Bit Rate Control: Variable Bit Rate, Constant Bit Rate

Video Bit Rate: 1024Kbps~20480Kbps

Frame Rate: 50HZ:1fps~50fps 60HZ:1fps~60fps （3840*2160: Max30fps）

Protocol: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, VISCA over IP(TCP&UDP)

OSD Menu:

Language: English/Chinese

Dimension:

Camera: 220mm×173mm×117mm

Package: 32x30x31cm

Note:

Note: When HDMI outputs 4K, IP outputs 4K, and 3G-SDI&USB3.0 has no image. If you need 3G-SDI and HDMI output image, the HDMI needs to output 1080p or lower than 1080p resolution.
