12x FHD PTZ Video Camera with IP/3G-SDI/HDMI/USB3.0 video output port

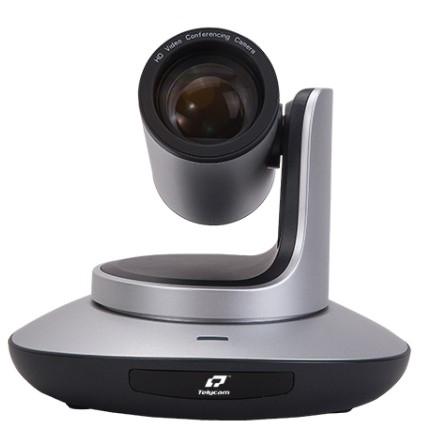

Telycam TLC-300-IP-12 is a 12x professional-grade FHD IP PTZ video camera, support IP, HDMI, SDI, and USB3.0 simultaneously output, ideal for broadcast, video production, live event. professional AV solution and video-conferencing application.

Camera:

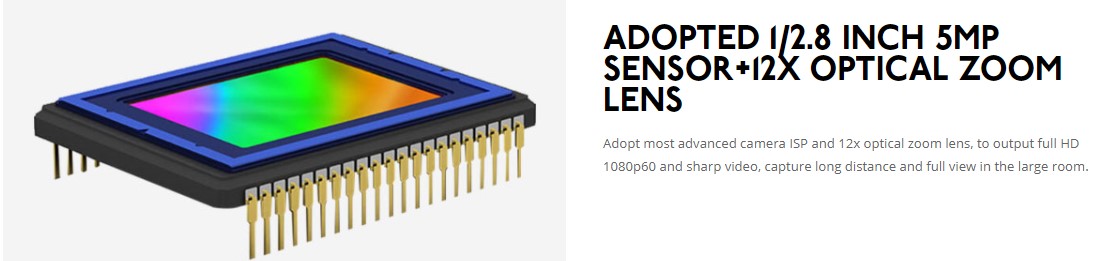

Sensor: 1/2.8 inch, 5mega pixel high-quality CMOS sensor

Video Format:

HDMI: 1920x1080P60/50/30/25; 1280x720P60/50/30/25; 1920x1080i60/50

SDI: 1920x1080P60/50/30/25; 1280x720P60/50/30/25; 1920x1080i60/50

IP: Main Stream: 1920×1080@30-1;1280x720p30-1; Sub stream:1280x720p30-1; 1024×576@30-1; 640×360@30-1

USB3.0:  1920x1080P60/50/30/25; 1280x720P60/50/30/25; 1024x576P30

USB2.0: 1024x576P30, 960x540P30, 640x360P30, 512x288P30, 352x288P30

Zoom: 12x optical zoom& 2x digital zoom

FOV: 6.3°（wide）~ 72.5°（tele）

Focal Length: f＝3.92(wide)～47.32mm(tele)

Preset: 10 via remote controller; 128 via serial port; preset precision:0.1°

Noise Reduction: 2D&3D

SNR: >50dB

Minimum Lux: 0.01 lux

White Balance: Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/

Anti Flicker: 50Hz/60Hz/OFF

D/N Mode: Supported

Gamma: Supported

Mirror Image: supported

Iris: Auto / Manual/

Electric Shutter: Auto / Manual/

BLC: Auto / Manual/

Focus: Auto / Manual/

Mechanism

Rotation Angle: Pan: -170° ~ +170°;   Tilt: -30° ~ +90°

Rotation Speed : Pan: 0°~120°/s ;     Tilt: 0°~80°/s

PanTilt Flip: Supported

Control Port: RS232 / RS485/RJ45/USB3.0

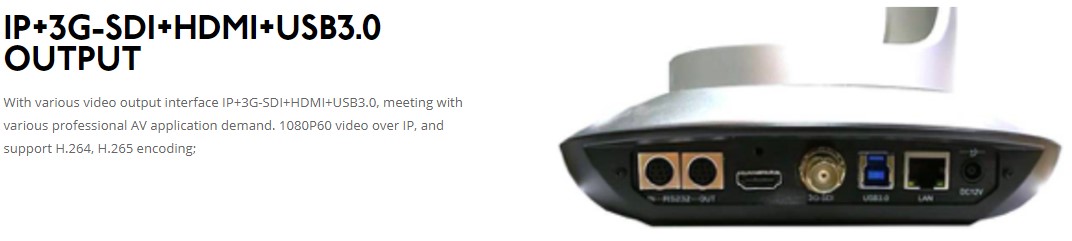

Video Port: HDMI/ RJ45/3G-SDI/USB3.0/USB2.0

Encode:

Network Speed: 1000M

Video Encoding: H.264/H.265

Bit Rate Control: Variable Bit Rate, Constant Bit Rate

Video Bit Rate: 1024Kbps~10240Kbps

Frames: 50HZ:1fps~30fps  60HZ:1fps~30fps

IP Protocol: TCP/IP, HTTP, RTSP, ONVIF, DHCP, VISCA over IP (UDP&TCP)

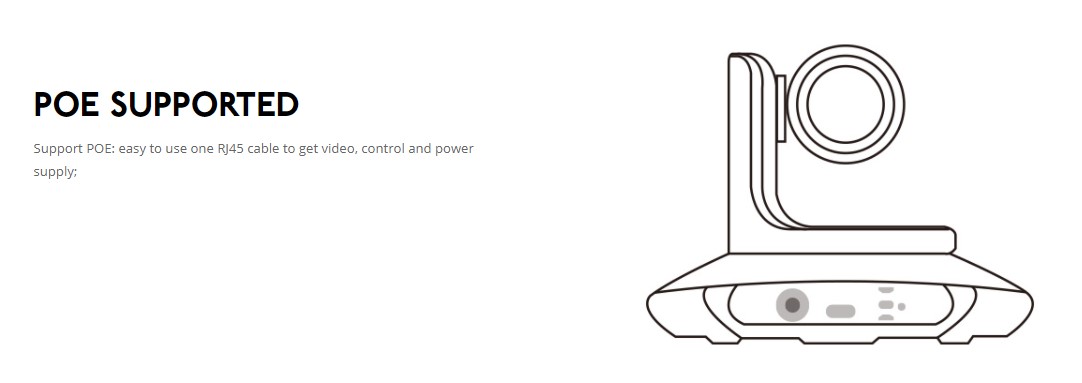

POE: Supported

Input Voltage: DC12V, 2A

OSD Menu:

Language: English/Chinese

Dimension:

Dimension: 220mm×173mm×190mm

Net Weight:1.25KGS（2.8LBS）

Package: 32x30x31cm
